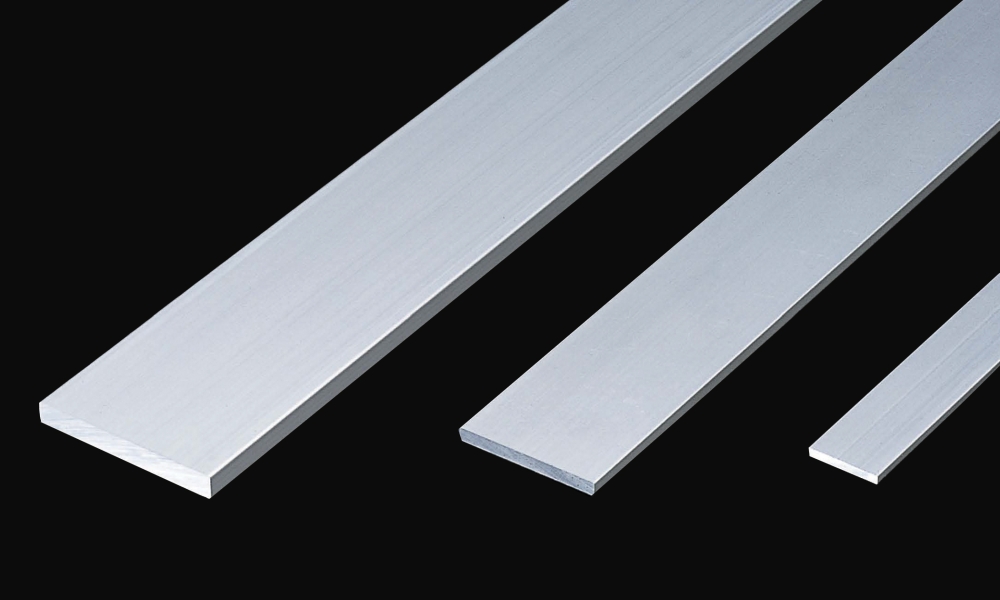

Flat Bar

Product Type

Flat Bar 30 T=10
Item No. : SFF-A14
STP SOLID DXF
Name
Flat Bar 30 T=10 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=2.248 x 10^4mm^4
ly=0.250 x 10^4mm^4
Section Modulus
Zx=1.499 x 10^3mm^3
Zy= 0.500 x 10^3mm^3
Mass Unit
0.81 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 15 T=2
Item No. : SFF-A154
STP SOLID DXF
Name
Flat Bar 15 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.0562 x 10^4mm^4
ly=0.001 x 10^4mm^4
Section Modulus
Zx=0.075 x 10^3mm^3
Zy=0.01 x 10^3mm^3
Mass Unit
0.08 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 15 T=3
Item No. : SFF-A164
STP SOLID DXF
Name
Flat Bar 15 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.0843 x 10^4mm^4
ly=0.0033 x 10^4mm^4
Section Modulus
Zx=0.112 x 10^3mm^3
Zy=0.022x 10^3mm^3
Mass Unit
0.12 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 20 T=2
Item No. : SFF-A174
STP SOLID DXF
Name
Flat Bar 20 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.1333 x 10^4mm^4
ly=0.0013 x 10^4mm^4
Section Modulus
Zx=0.133 x 10^3mm^3
Zy= 0.013 x 10^3mm^3
Mass Unit
0.11 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 20 T=3
Item No. : SFF-A184
STP SOLID DXF
Name
Flat Bar 20 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.2 x 10^4mm^4
ly=0.0045 x 10^4mm^4
Section Modulus
Zx=0.2 x 10^3mm^3
Zy= 0.03 x 10^3mm^3
Mass Unit
0.16 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 20 T=5
Item No. : SFF-A194
STP SOLID DXF
Name
Flat Bar 20 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.3333 x 10^4mm^4
ly=0.0208 x 10^4mm^4
Section Modulus
Zx=0.333 x 10^3mm^3
Zy= 0.083 x 10^3mm^3
Mass Unit
0.27 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 30 T=2
Item No. : SFF-A204
STP SOLID DXF
Name
Flat Bar 30 T=2 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.45 x 10^4mm^4
ly=0.002 x 10^4mm^4
Section Modulus
Zx=0.3 x 10^3mm^3
Zy= 0.02 x 10^3mm^3
Mass Unit
0.16 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 30 T=3
Item No. : SFF-A214
STP SOLID DXF
Name
Flat Bar 30 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=0.675 x 10^4mm^4
ly=0.0067 x 10^4mm^4
Section Modulus
Zx=0.45 x 10^3mm^3
Zy=0.045 x 10^3mm^3
Mass Unit
0.24 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 30 T=5
Item No. : SFF-A224
STP SOLID DXF
Name
Flat Bar 30 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=1.125 x 10^4mm^4
ly=0.0312 x 10^4mm^4
Section Modulus
Zx=0.75 x 10^3mm^3
Zy= 0.125 x 10^3mm^3
Mass Unit
0.41 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 40 T=3
Item No. : SFF-A234
STP SOLID DXF
Name
Flat Bar 40 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=1.6 x 10^4mm^4
ly=0.009 x 10^4mm^4
Section Modulus
Zx=0.8 x 10^3mm^3
Zy= 0.06 x 10^3mm^3
Mass Unit
0.32 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 40 T=5
Item No. : SFF-A244
STP SOLID DXF
Name
Flat Bar 40 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=2.666 x 10^4mm^4
ly=0.0416 x 10^4mm^4
Section Modulus
Zx=1.333 x 10^3mm^3
Zy=0.166 x 10^3mm^3
Mass Unit
0.54 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 50 T=3
Item No. : SFF-A384
STP SOLID DXF
Name
Flat Bar 50 T=3 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=3.125 x 10^4mm^4
ly=0.011 x 10^4mm^4
Section Modulus
Zx=1.25 x 10^3mm^3
Zy= 0.075 x 10^3mm^3
Mass Unit
0.4 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 50 T=5
Item No. : SFF-A394
STP SOLID DXF
Name
Flat Bar 50 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=5.208 x 10^4mm^4
ly=0.052 x 10^4mm^4
Section Modulus
Zx=0.208 x 10^3mm^3
Zy=0.208 x 10^3mm^3
Mass Unit
0.68 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 70 T=5
Item No. : SFF-A404
STP SOLID DXF
Name
Flat Bar 70 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=14.282 x 10^4mm^4
ly=0.073 x 10^4mm^4
Section Modulus
Zx=4.081 x 10^3mm^3
Zy=0.291 x 10^3mm^3
Mass Unit
0.94 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 100 T=5
Item No. : SFF-A414
STP SOLID DXF
Name
Flat Bar 100 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=41.647 x 104mm4
ly=0.104 x 104mm4
Section Modulus
Zx=8.329 x 10^3mm^3
Zy= 0.416 x 10^3mm^3
Mass Unit
1.35 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 40 T=10
Item No. : SFF-AC4
STP SOLID DXF
Name
Flat Bar 40 T=10 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=5.330 x 10^4mm^4
ly=0.333 x 10^4mm^4
Section Modulus
Zx=2.665 x 10^3mm^3
Zy=0.666 x 10^3mm^3
Mass Unit
1.08 kg/m
EnvironmentRoHS
RoHS Compliant
Flat Bar 75 T=5
Item No. : SFF-AY4
STP SOLID DXF
Name
Flat Bar 75 T=5 (L=50~4000)
L (mm)
-
Material
A6063
Alumite Treatment
Geometrical Moment of Inertia
lx=17.567 x 104mm4
ly=0.078 x 104mm4
Section Modulus
Zx=4.685 x 103mm3
Zy=0.312 x 103mm3
Mass Unit
1.01 kg/m
EnvironmentRoHS
RoHS Compliant
