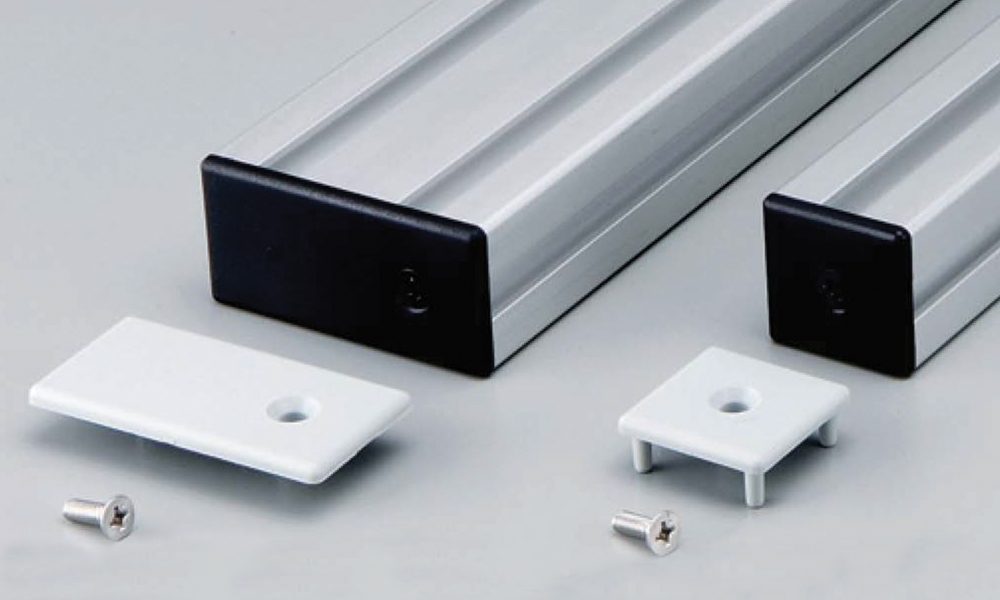

Frame Cap Lock Type SF-30·30/ SF-K-30·30

Product Type

Frame Cap Lock Type 3060 (Black)

Item No. : SFK-04L

STP SOLID DXF

Technical Data >>

Name: Frame Cap Lock Type 3060 (Black)
L (mm): -
Material: Polyamide(Cap)
Color: Black
Geometrical Moment of Inertia: -
Section Modulus: Product included
Small Flat Screw with Cross Hole (M4X12) Chromate Black
Mass Unit: 5.9 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Frame Cap Lock Type 3060 (Light Gray)

Item No. : SFK-04LG

STP SOLID DXF

Technical Data >>

Name: Frame Cap Lock Type 3060 (Light Gray)
L (mm): -
Material: Polyamide(Cap)
Color: Light Gray
Geometrical Moment of Inertia: -
Section Modulus: Product included
Small Flat Screw with Cross Hole (M4X12) Stainless
Mass Unit: 5.9 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Frame Cap Lock Type N3030 (Black)

Item No. : SFK-05LB

STP SOLID DXF

Technical Data >>

Name: Frame Cap Lock Type N3030 (Black)
L (mm): -
Material: Polyamide(Cap)
Color: Black
Geometrical Moment of Inertia: -
Section Modulus: Product included
Small Flat Screw with Cross Hole (M4X12) Chromate Black
Mass Unit: 3.7 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Frame Cap Lock Type N3030 (Light Gray)

Item No. : SFK-05LG

STP SOLID DXF

Technical Data >>

Name: Frame Cap Lock Type N3030 (Light Gray)
L (mm): -
Material: Polyamide(Cap)
Color: Light Gray
Geometrical Moment of Inertia: -
Section Modulus: Product included
Small Flat Screw with Cross Hole (M4X12) Stainless
Mass Unit: 3.7 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Detail Product Other

Usable Frame: SF-30·30/ SF-K-30·30
