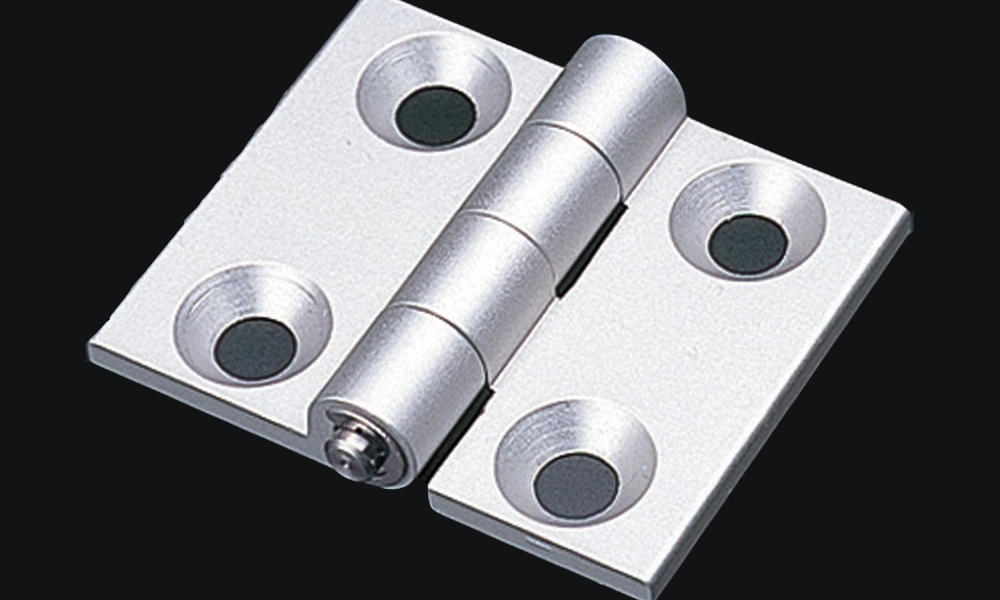

Flat Hinge for Irregular Shape Frame

Product Type

Flat Hinge L40-S

Item No. : SFA-2A5

SOLID DXF

Technical Data >>

Flat Hinge L45-S

Item No. : SFA-2A6

SOLID DXF

Technical Data >>

Flat HingeL40-S Kit

Item No. : SFK-2A5

SOLID DXF

Technical Data >>

Name: Flat HingeL40-S Kit
L (mm): -
Material: Aluminum extruded
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L40-S x1
Cross-Recessed Flat Head Bolt (M6 x 12) x2
Cross-Recessed Flat Head Bolt (M6 x 15) x2
T Nut L (M6) x2
T Nut S (M6) x2
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L40-S (Stainless) Kit

Item No. : SFK-2A5S

SOLID DXF

Technical Data >>

Name: Flat Hinge L40-S (Stainless) Kit
L (mm): -
Material: Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L40-S x1
Cross-Recessed Flat Head Bolt (M6 x 12) x2
Cross-Recessed Flat Head Bolt (M6 x 15) x2
T Nut L (M6) x2
T Nut S (M6) x2
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L45-S Kit

Item No. : SFK-2A6

SOLID DXF

Technical Data >>

Name: Flat Hinge L45-S Kit
L (mm): -
Material: Aluminum extruded
Alumite treatment
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L45-S x1
Cross-Recessed Flat Head Bolt (M6x12) x2
Cross-Recessed Flat Head Bolt (M6x15) x2
T Nut L (M6) x2
T Nut S (M6) x2
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant

Flat Hinge L45-S (Stainless) Kit

Item No. : SFK-2A6S

SOLID DXF

Technical Data >>

Name: Flat Hinge L45-S (Stainless) Kit
L (mm): -
Material: Aluminum extruded
Alumite treatment
Bolt & Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Flat Hinge L45-S x1
Cross-Recessed Flat Head Bolt (M6x12) x2
Cross-Recessed Flat Head Bolt (M6x15) x2
T Nut L (M6) x2
T Nut S (M6) x2
Mass Unit: Weight 58.7 g
Load Capacity 73 N
EnvironmentRoHS: RoHS Compliant
