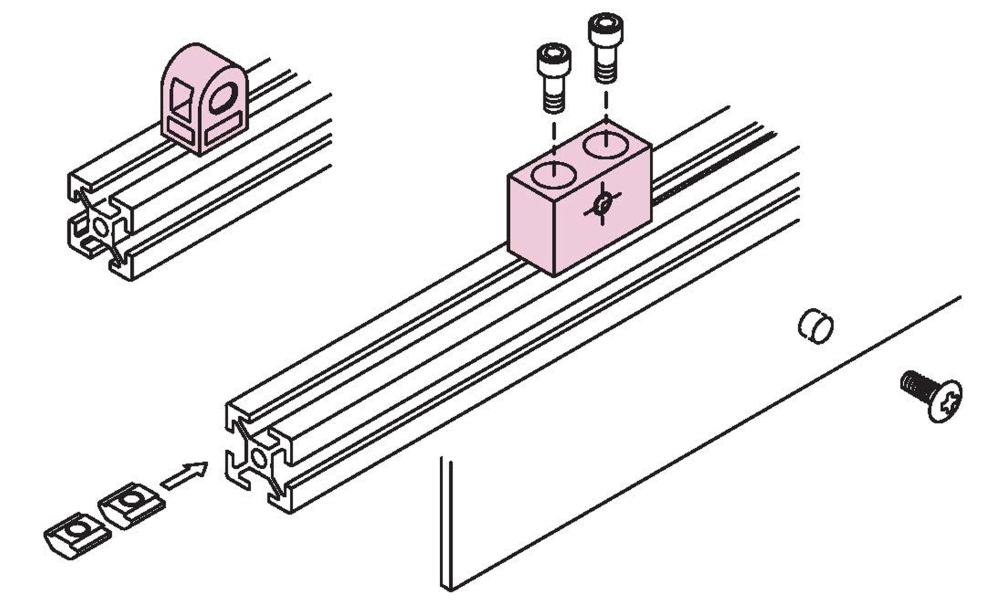

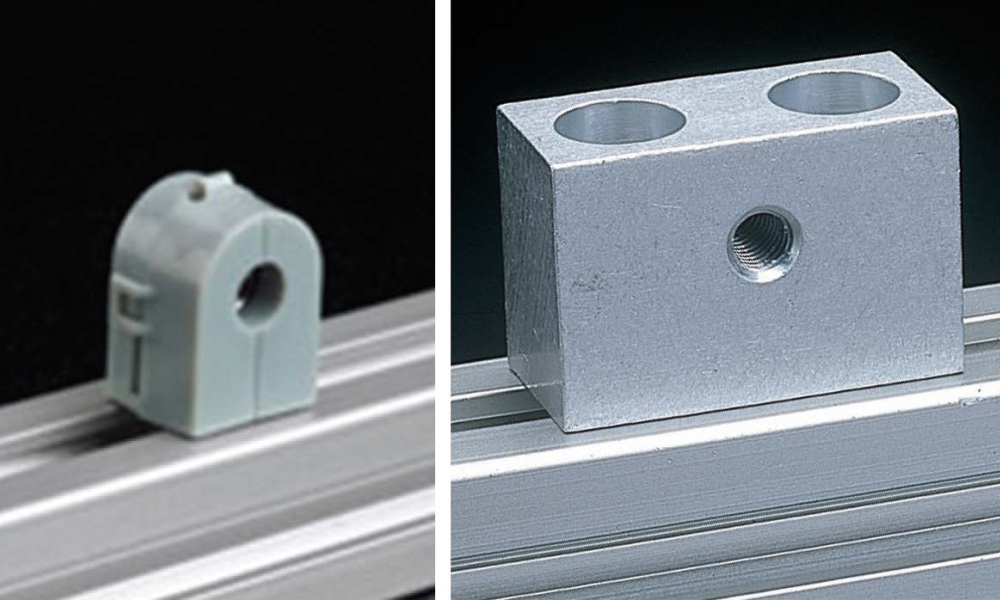

Cover Holder SS / Cover Support SS

Product Type

Cover Holder SS

Item No. : SFA-KH5

STP DXF

Technical Data >>

Cover Support SS

Item No. : SFJ-K01

STP DXF

Technical Data >>

Cover Support SS Flat

Item No. : SFJ-K11

STP DXF

Technical Data >>

Cover Support SS Kit

Item No. : SFK-K01

STP DXF

Technical Data >>

Name: Cover Support SS Kit
L (mm): -
Material: A6063S-T5
Geometrical Moment of Inertia: -
Section Modulus: Cover Support SS x1
Hexagon Socket Bolt (M5 x20) x2
T Nut SS (M5) x2
Truss Screw (M5 x10) x1
Mass Unit: 19 g
EnvironmentRoHS: RoHS Compliant

Cover Support SS (Stainless) Kit

Item No. : SFK-K01S

STP DXF

Technical Data >>

Name: Cover Support SS (Stainless) Kit
L (mm): -
Material: A6063S-T5
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Cover Support SS x1
Hexagon Socket Bolt (M5 x20) x2
T Nut SS (M5) x2
Truss Screw (M5 x10) x1
Mass Unit: 19 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Cover Suport SS Flat Kit

Item No. : SFK-K11

STP DXF

Technical Data >>

Name: Cover Suport SS Flat Kit
L (mm): -
Material: A6063S-T5
Geometrical Moment of Inertia: -
Section Modulus: Cover Support SS Flat x1
Hexagon Socket Bolt (M5 x8) x2
T Nut SS (M5) x2
Truss Screw (M5 x10) x1
Mass Unit: 10 g
EnvironmentRoHS: RoHS Compliant

Cover Support SS Flat (Stainless) Kit

Item No. : SFK-K11S

STP DXF

Technical Data >>

Name: Cover Support SS Flat (Stainless) Kit
L (mm): -
Material: A6063S-T5
Bolt and Nut: Stainless
Geometrical Moment of Inertia: -
Section Modulus: Cover Support SS Flat x1
Hexagon Socket Bolt (M5 x8) x2
T Nut SS (M5) x2
Truss Screw (M5 x10) x1
Mass Unit: 10 g
EnvironmentRoHS: RoHS Compliant
Green Procurement

Compatible to all SF20 series (Groove Width 6mm)
