PARTS

Product Type

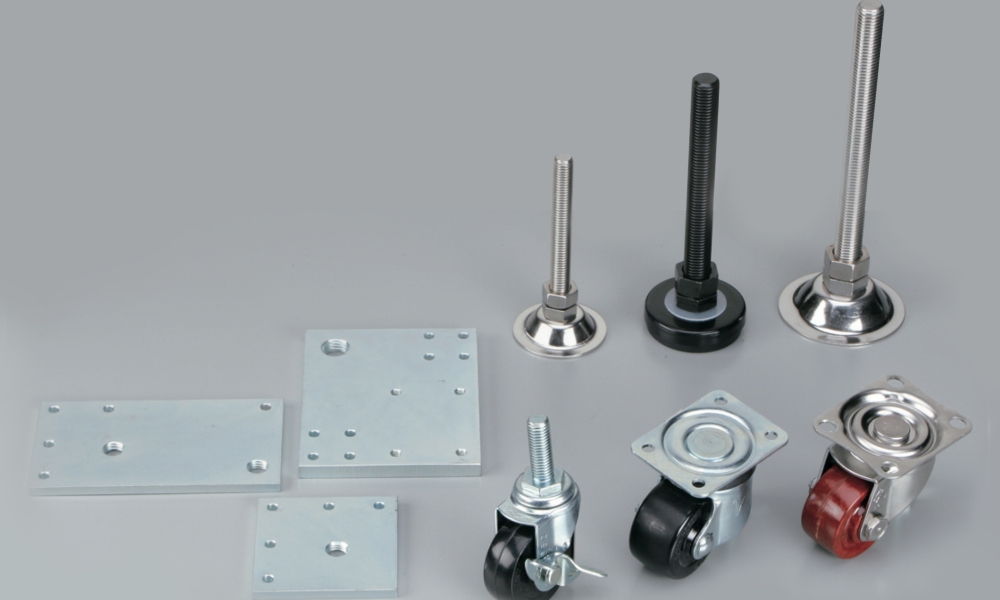

Level Adjuster Kit SS

Item No. : SFK-510A

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit SS
L (mm): -
Material: Adjuster Plate SS: SS400 Uni-chrome
Adjuster M12: SS400 Uni-chrome
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS x1
T Nut SS (M5) x4
Adjuster M12 x1
Hexagon Socket Bolt (M5 x10) x4
Mass Unit: Adjuster Plate SS: 240 g
Adjuster M12: 169 g (Load capacity = 500 Kg)
EnvironmentRoHS: RoHS 10 Compliant

Level Adjuster Kit SS (Stainless)

Item No. : SFK-510S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit SS (Stainless)
L (mm): -
Material: Adjuster Plate SS (Stainless): SUS304
Adjuster M12 (Stainless): SUS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS (Stainless) x1
T Nut SS (M5) x4
Adjuster M12 (Stainless) x1
Hexagon Socket Bolt (M5 x10) x4
Mass Unit: Adjuster Plate SS (Stainless): 240 g
Adjuster M12 (Stainless): 165 g (Load capacity = 300 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit SS with Caster

Item No. : SFK-C20A

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit SS with Caster
L (mm): -
Material: Adjuster Plate SS: SS400 Uni-chrome
Adjuster M12: SS400 Uni-chrome
Caster A: Rubber
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate SS x1
Adjuster M12 x1
T Nut SS (M5) x4
Caster A x1
Hexagon Socket Bolt (M5 x10) x4
Hexagon Nut (M12) x1
Mass Unit: Adjuster Caster Plate SS: 450 g
Adjuster M12: 169 g (Load capacity = 500 kg)
Caster A: 189 g (Load capacity = 30 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit SS with Caster (Stainless)

Item No. : SFK-C20S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit SS with Caster (Stainless)
L (mm): -
Material: Adjuster Caster Plate SS (Stainless): SS400 Uni-chrome
Caster A (Stainless): Nylon
Adjuster M12 (Stainless): SUS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate SS (Stainless) x1
Caster A (Stainless) x1
Hexagon Nut (M12) Stainless x1
ST Nut SS (M5) x4
Hexagon Socket Bolt (M5 x10) Stainless x4
Adjuster M12 (Stainless) x1
Mass Unit: Adjuster Caster Plate SS (Stainless): 450 g
Caster A (Stainless): 147 g (Load capacity = 40.8 kg)
Adjuster M12 (Stainless): 165 g
EnvironmentRoHS: RoHS10 Compliant

Caster Kit SS

Item No. : SFK-C21A

STP SOLID DXF

Technical Data >>

Name: Caster Kit SS
L (mm): -
Material: Adjuster Plate SS: SS400 Uni-chrome
Caster A: Rubber
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS x1
Caster A x1
Hexagon Nut (M12) x1
T Nut SS (M5) x4
Hexagon Socket Bolt (M5 x10) x4
Mass Unit: Adjuster Plate SS: 240 g
Caster A: 189 g (Load capacity = 30 kg)
EnvironmentRoHS: RoHS10 Compliant

Caster Kit SS (Stainless)

Item No. : SFK-C21S

STP SOLID DXF

Technical Data >>

Name: Caster Kit SS (Stainless)
L (mm): -
Material: Adjuster Plate SS (Stainless): SUS304
Caster A (Stainless): Nylon
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS (Stainless) x1
Caster A (Stainless) x1
Hexagon Nut (M12) Stainless x1
ST Nut SS (M5) x4
Hexagon Socket Bolt (M5 x10) Stainless x4
Mass Unit: Adjuster Plate SS (Stainless): 240 g
Caster A (Stainless): 147 g (Load capacity = 40.8 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 40

Item No. : SFK-C22

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 40
L (mm): -
Material: Adjuster Caster Plate 40: SS400 Uni-chrome
Adjuster M16: SS400 Zn Black
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 40 x1
Adjuster M16 x1
T Nut SS (M5) x8
Hexagon Socket Bolt (M5 x14) x8
Mass Unit: Adjuster Caster Plate 40: 820 g
Adjuster M16: 386 g (Load capacity = 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Caster Kit SS With Brake

Item No. : SFK-C22A

STP SOLID DXF

Technical Data >>

Name: Caster Kit SS With Brake
L (mm): -
Material: Adjuster Plate SS: SS400 Uni-chrome
Caster A with Brake: Rubber
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS x1
T Nut SS(M5) x4
Caster A with Brake x1
Hexagon Socket Bolt (M5 x10) x4
Hexagon Nut (M12) x1
Mass Unit: Adjuster Plate SS: 240 g
Caster A with Brake: 223 g (Load capacity = 30 kg)
EnvironmentRoHS: RoHS10 Compliant

Caster Kit SS With Brake (Stainless)

Item No. : SFK-C22B

STP SOLID DXF

Technical Data >>

Name: Caster Kit SS With Brake (Stainless)
L (mm): -
Material: Adjuster Plate SS (Stainless): SUS304
Caster A with Brake (Stainless): Nylon
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Plate SS (Stainless) x1
Caster A with Brake (Stainless) x1
Hexagon Nut (M12) Stainless x1
ST Nut SS (M5) x1
Hexagon Socket Bolt (M5 x10) Stainless x4
Mass Unit: Adjuster Plate SS (Stainless): 240 g
Caster A with Brake (Stainless): 147 g (Load capacity = 40.8 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 40 (Stainless)

Item No. : SFK-C22U

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 40 (Stainless)
L (mm): -
Material: Adjuster Caster Plate 40 (Stainless): SUS304
Adjuster BM16 (Stainless): SUS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 40 (Stainless) x1
Adjuster BM16 (Stainless) x1
ST NutSS (M5) x8
Hexagon Socket Bolt (M5 x14) Stainless 8
Mass Unit: Adjuster Caster Plate 40 (Stainless): 0.83 kg
Adjuster BM16 (Stainless): 375 g (Load capacity = 560 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster Kit 40 with Caster

Item No. : SFK-C23

STP SOLID DXF

Technical Data >>

Name: Level Adjuster Kit 40 with Caster
L (mm): -
Material: Adjuster Caster Plate 40: SS400 Uni-chrome
Caster B: Phenolic Resin
Adjuster M16: SS400 Zn Black (Bottom: Neoprene)
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 40 x1
Caster B x1
Hexagon Socket Bolt (M5 x4) 8
Adjuster M16 x1
T Nut SS (M5) x8
Hexagon Socket Bolt (M6 x10) x4
Mass Unit: Adjuster Caster Plate 40: 820 g
Caster B: 340 g (Load capacity = 150 kg)
Adjuster M16: 386 g (Load capacity = 500 kg)
EnvironmentRoHS: RoHS10 Compliant

Level Adjuster With Caster Kit 40 (Stainless)

Item No. : SFK-C23S

STP SOLID DXF

Technical Data >>

Name: Level Adjuster With Caster Kit 40 (Stainless)
L (mm): -
Material: Adjuster Caster Plate 40 (Stainless): SUS304
Caster B (Stainless): Phenolic Resin
Adjuster BM16 (Stainless): SUS304 Electropolishing
Geometrical Moment of Inertia: -
Section Modulus: Adjuster Caster Plate 40 (Stainless) x1
Caster B (Stainless) x1
Hexagon Socket Bolt (M5 x14) Stainless x8
Adjuster BM16 (Stainless) x1
ST Nut SS (M5) x8
Hexagon Socket Bolt (M8 x10) Stainless x4
Mass Unit: Adjuster Caster Plate 40 (Stainless): 830 g
Caster B (Stainless): 285 g (Load capacity = 71.4 kg)
Adjuster BM16 (Stainless): 375 g (Load capacity = 560 kg)
EnvironmentRoHS: RoHS10 Compliant

Detail Product Other

Compatible to all SF20 series (Groove Width 6mm)
